Product name	KYDD-1
Vehicle size （MM）	2660*1430*1850
Wheel base  (MM)	1930
Rear wheelbase  (MM)	1170
Vehicle weight (including battery)KG	410
Front/rear tire size	125/65-12 Steel Wheel----155/70R12 Aluminum wheels
Ground clearance（MM）	160
Top speed（KM/H）	45
Minimum turning radius（MM）	2500
Maximum allowable total mass（KG）	800
Underframe architecture	Rear arm independent suspension+rear anti roll stabilizer bar
Front and rear shock absorption methods	Spring tube integrated shock absorber
Power mode	60v3000w Electrical machinery
Charging method	Built in 6015 charger with charging gun and charging dock
Battery capacity	60v120ah lithium battery

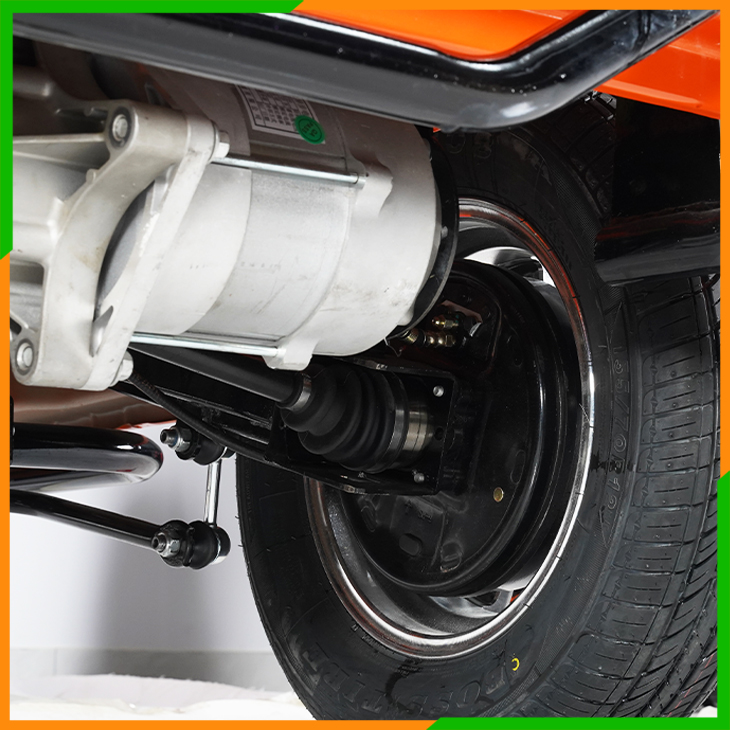

Drive mode	Rear powertrain ball cage with equal length half axis drive
Ceiling structure	Split type keel frame+leather style tarpaulin

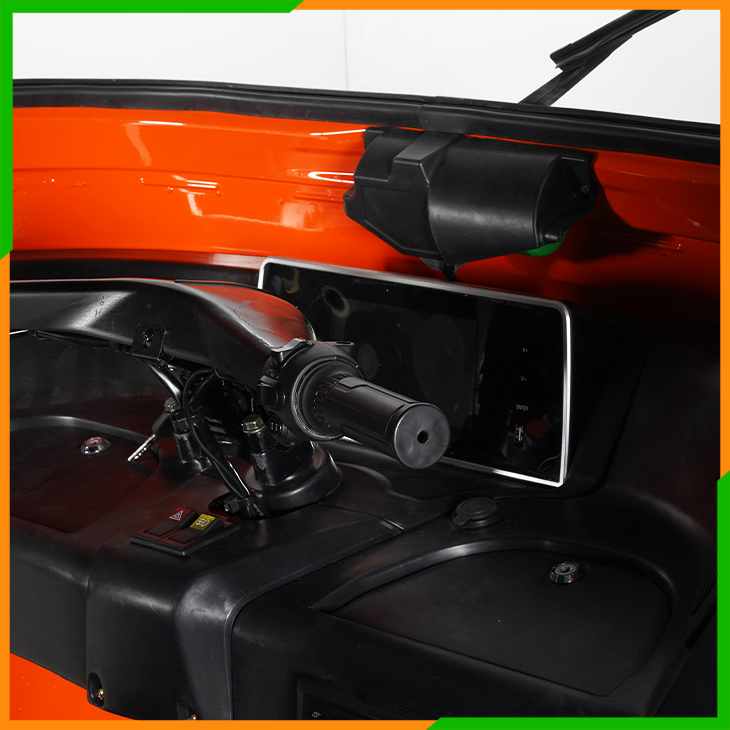

Electrical equipment	LCD instrument panel/LED lens front combination headlights+LED rear combination taillights, rear license plate lights/multimedia radio+external antenna (supports Bluetooth, USB playback)/USB dual plug charging dock/ceiling LED reading light

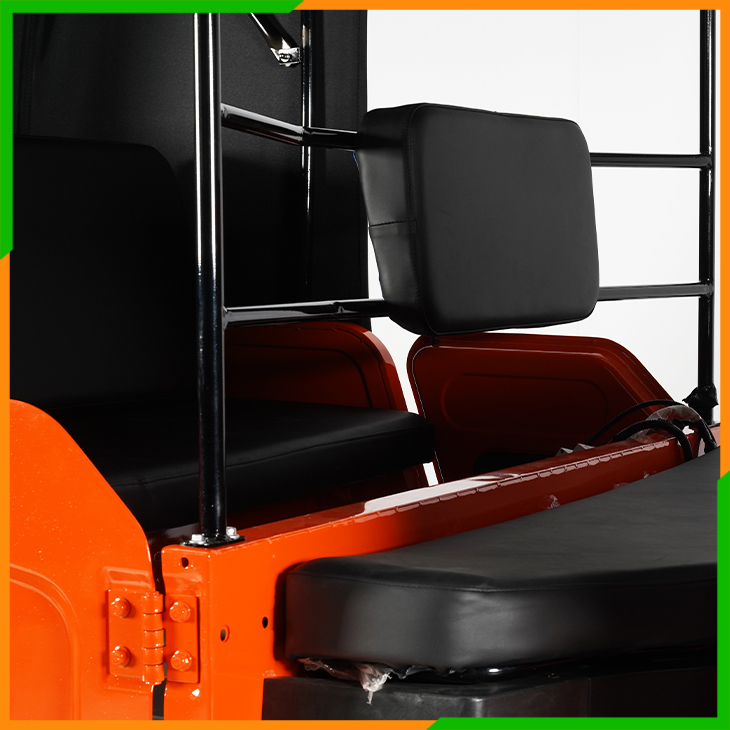

Seat	Front and rear double row seats
Braking method	Front and rear drum brake discs+hydraulic assist foot brake+foot pedal parking brake
Optional configuration：	Built in 4000w range extender

Product Details

Features:

Pure copper motor, famous brand, more durable, high quality, 1 year warranty.Good conductivity, high speed operation, low heat generation, long life

Brand new controller, sino wave, high quality, 1 year warranty

Brand new tire, famous brand in china, preferably rubber material for longer life, anti-skid, wear-resistant and anti-wear, stronger grip

Famous brand battery, Chilwee or Tianneng, quality assurance, worldwide sale

Colors can be customized, ABS+Baking Paint, brighter appearance and wear-resistant

Packaging and Transportation

& Factory wholesale price

& Long battery life on a single charge

& Minimum order is 50 units

& High-quality materials and craftsmanship

& Fast and reliable shipping

& Factory Outlet

& Become a dealer and get exclusive quotes

& Environmentally friendly energy

& Excellent customer service and support

& Fast and efficient charging

Exhibition Photos

FAQ

1: How is the packing?

A: We pack our bikes in cardboard boxes. Carton Size is different from different package way. One ebike into per carton

 2: What are your terms of payment?

A: T/T 30% as deposit, and 70% before delivery. We’ll show you the photos of the products and packages before you pay the balance.

 3: Can I get a sample and how long will it take?

A: Yes.  We can supply samples if we have stock.But the buyer pays for the sample and freight. Within 7 days after receiving the payment, we will send it out.

 4: Do you have the products in stock?

A:Yes, Hot selling models are in stock. And it will be update before you order.

 5: How does your factory do regarding quality control?

A: Quality is priority. We always attach great importance to quality control from the very beginning to the end of the production. Every product will be fully assembled and carefully tested before it’s packed for shipment.

 6: What is the warranty for the bikes?

A:We usually provide 12 months of warranty for the bike frame, motors; 6 months for controller, battery.

 7: How it would be shipped?

A:Shipping method depends on your choices. For samples, you need to have shipping agent in China, and for full container, we can help you ship to your port.

 8: What about the voltage or the electrical plug issues?

A: We can provide 220/50,220/60,110/60 chargers, thus you don’t have to worry about the electricity plug issues in your country. We are looking forward to building long term business relationship with each of our clients worldwide!

 9:Can i use my logo/sticker on electric bicycle?

A: Yes, you need offer you your logo/sticler design, we’ll help you print & paint it. Designing service is available.

10: Need I assemble parts of the electric bike when we get them?

A: Yes, we will take out few parts,like pedals(if have),mirrors(if have).And will send one professional tool bag to help you assemble. It’s easy to make it.
